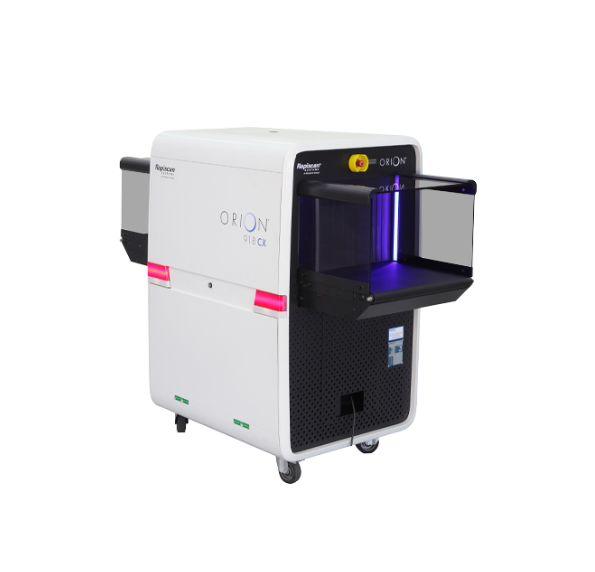

Rapiscan 918CX

The new 918CX is a High Performance, compact and versatile 540mm by 360mm tunnel X-Ray system with exceptional image quality and excellent threat detection alert capabilities.

Specification

Industry Best Resolution and Material Discrimination
Explosives and Narcotics Detection
Low Density Image Enhancement
Matrixing, Networking and Remote Viewing

Technical
Options
Downloads

Standard System Configuration

Rapiscan 918CX

Length: 2157 mm
Width: 794 mm
Height: 1356 mm
Tunnel Size (WxH): 540 mm x 360 mm
Net Weight: 414 kgs
Resolution: 38-40 AWG
Penetration: 31-33 mm steel standard, 35 mm high penetration option
Conveyor Speed: 0.2 m/sec. Max load 165 kgs
Power Requirements: 115/230V +/-10% 50/60 Hz

Spectrum 4 Colour Imaging

918CX can present images to the operator in the Classic 4-colour and the new proprietary Spectrum 4-colour (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.

Explosives and Narcotics Detection

Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

Dual Mode Z Eff

This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel.

European Aviation Compliance

918CX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.
