DR17-I
Designed for extreme field operations with best price and quality ratio for large format panel

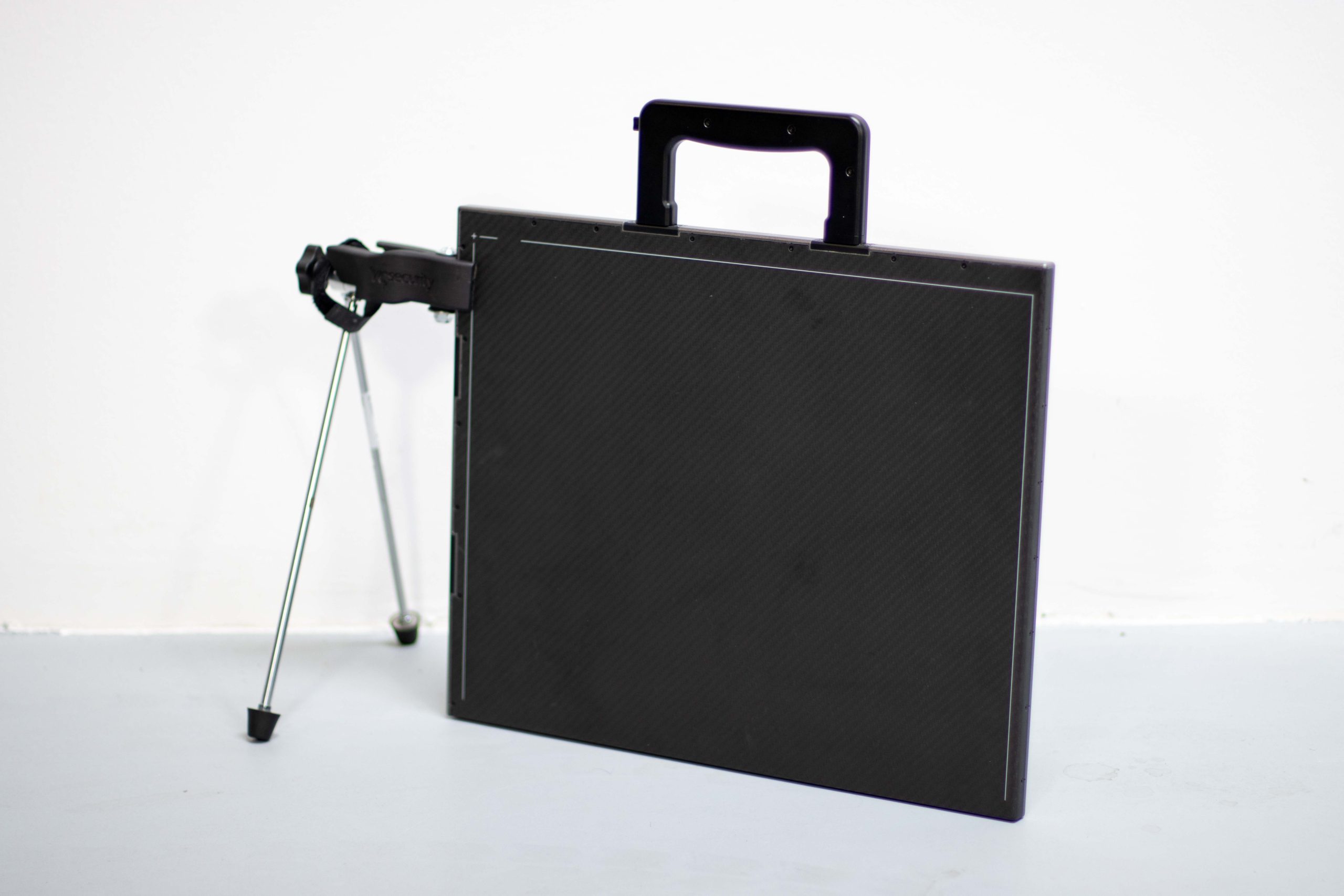

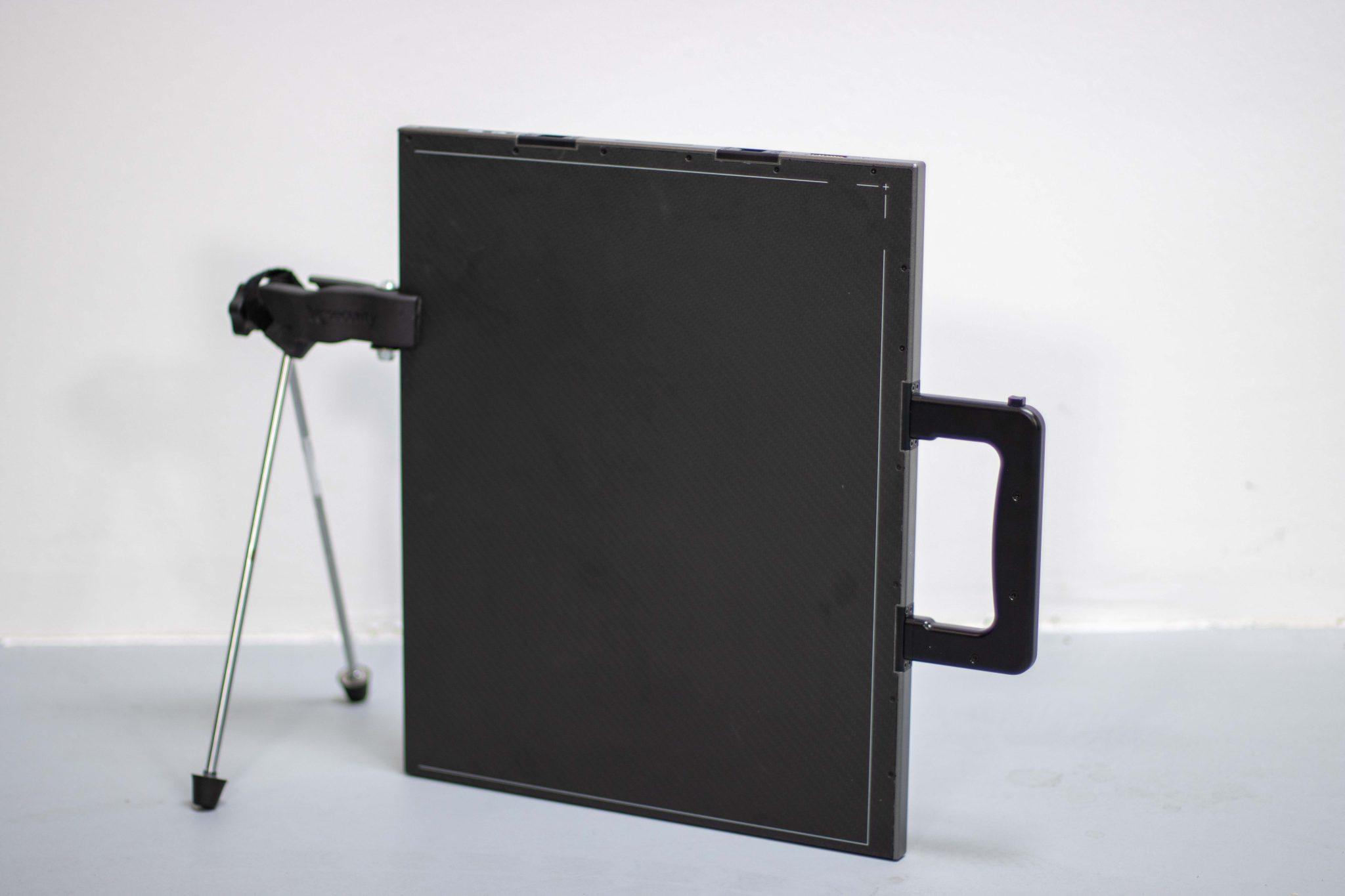

DR17-I is a robust, large format x-ray panel for security and defence x-ray applications. The panel is designed for harsh environments, is dust and water tight, impact and drop resistant to 1m. The imaging area is 350 x 430 mm and offers 16 bit, 100 micron ultra high resolution images. DR17-I is compatible with both pulsed and CP x-ray generators. Operators can control in sync mode from a tablet or laptop.. Includes rechargeable lithium-ion battery, providing up to 8 hours image capture time
Specification
- Pixel Pitch: 100 microns
- Active Image Area: 35 x 43 cm
- Weight: 3.8 kg
- Technical
- Options
- Downloads

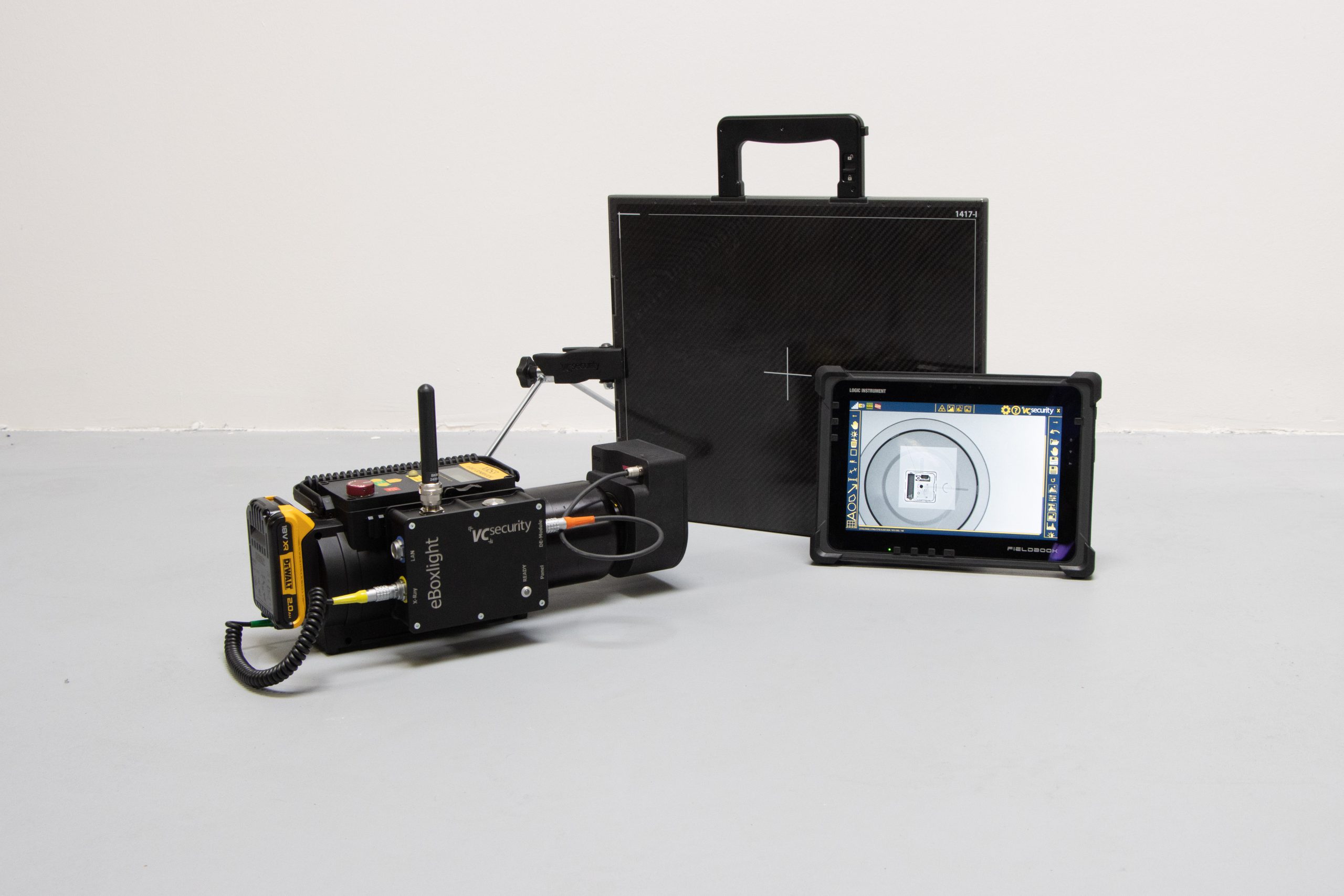

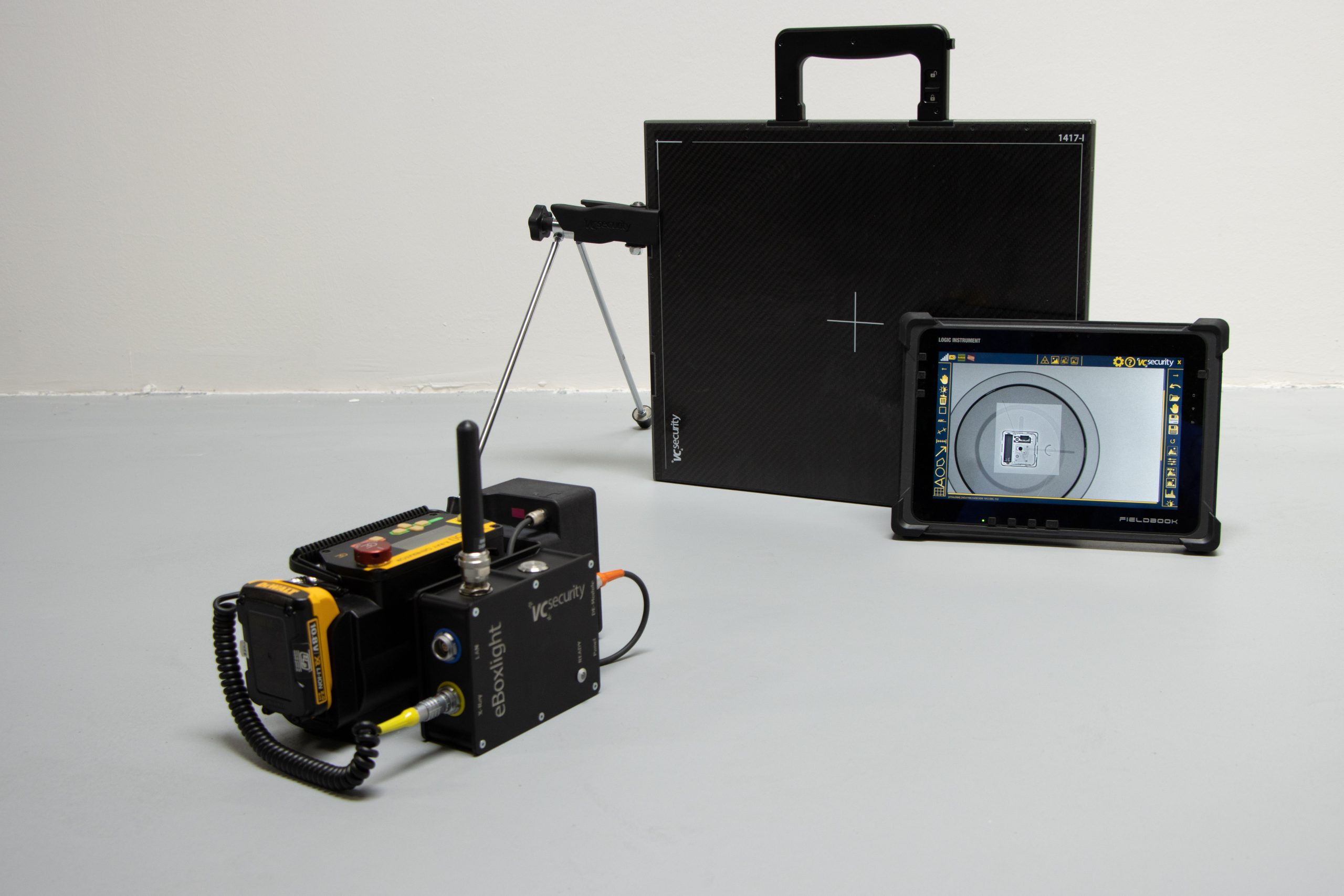

Standard System Configuration
- Golden XRS-3
- DR17-I Panel
- 10" Tablet Viewer/Controller
- Ebox Lite ECO
Active Image Area
350 x 430 mm
Pixel Pitch
100 Microns
Bottom Dead Area
5 mm
Environmental Protection
IP67
Image Resolution
5 lp/mm
Dimensions
458 x 379 x 15.5 mm
Options
- System with Golden Generator
- Imaging Panel standalone existing generator and controller
