Scansilc 3643U

SCANSILC 3643U is a robust, large format x-ray panel for security and defense x-ray applications. The panel is designed for harsh environments, is dust and water tight, impact and drop resistant to 3 ft. We use intelligent control circuitry within our x-ray panel instead of a separate communications box to provide fast, problem free deployment.

The imaging area is 14 x 17 " and offers 16 bit, 100 micron high resolution images.

SCANSILC 3643U is compatible with both pulsed and CP x-ray generators. Operators can control in sync mode from a tablet or laptop without needing an extra interface communications box. Alternative stand-alone (AED) mode with the x-ray generator triggered manually.

Two in-panel batteries allow for extended field operation.

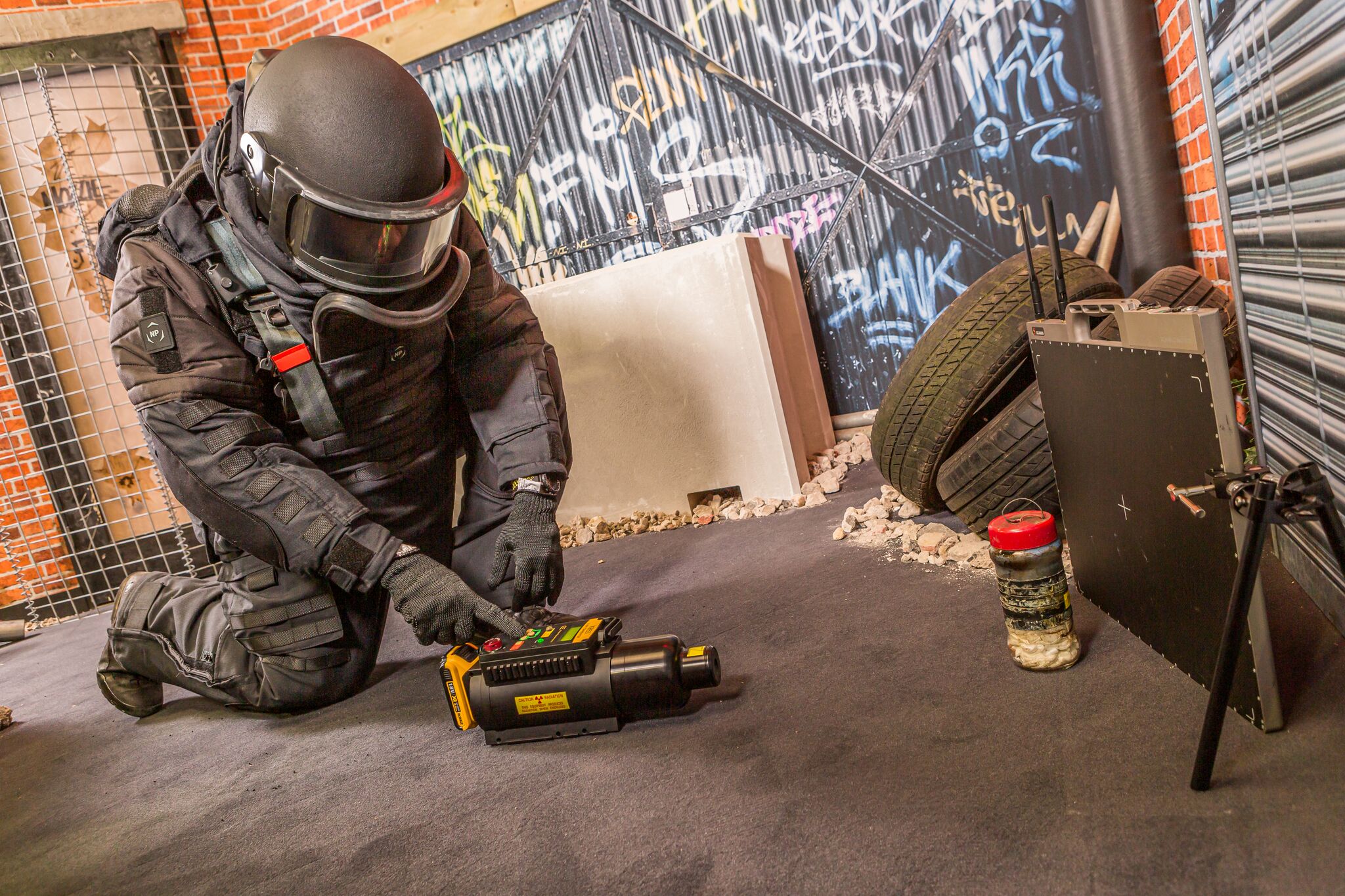

NOTE: Some operational images may still show previous X-ray panel designs. We are in the process of updating our materials, and new images will be added soon.

  • Super high definition image quality of 100 microns - 5 lp/mm.
  • Uniquely designed for security applications - not a fragile medical/veterinary panel in a protective cover
  • Ruggedised Unibody design - drop tested to 3 ft on all 4 corners

Technical

Standard system configuration

Scansilc 3643U

  • Imaging Area: 14 x 17 "
  • Pixel Pitch: 100 micron
  • Resolution: 5 lp/mm
  • Physical Dimensions: 17.95 × 17.13 × 0.79 "
  • Weight: 9.04 lbs
  • Environmental Protection: IP67 (Dust and Water Resistance)
  • Drop Test: Over 3ft on all 4 corners

Control

Unique control of the image panel and x-ray generator safely from the tablet/laptop without any additional bulky interface box, interface cables and connectors to carry and connect.

Dual operational modes

Either synchronized wired or wireless control from a tablet/laptop or standalone AED (automatic exposure detection) mode with manual firing of the X-ray generator.

Resistance

Unique IP67 environmental protection against dirt, dust and water ingress. IP68 connectors.

Extended operation

Dual in-panel batteries and hot-swappable spare battery providing extended field operational capability.

Options

  • A range of X-ray generator and control unit options are available
