Scanmax 225

Download Datasheet

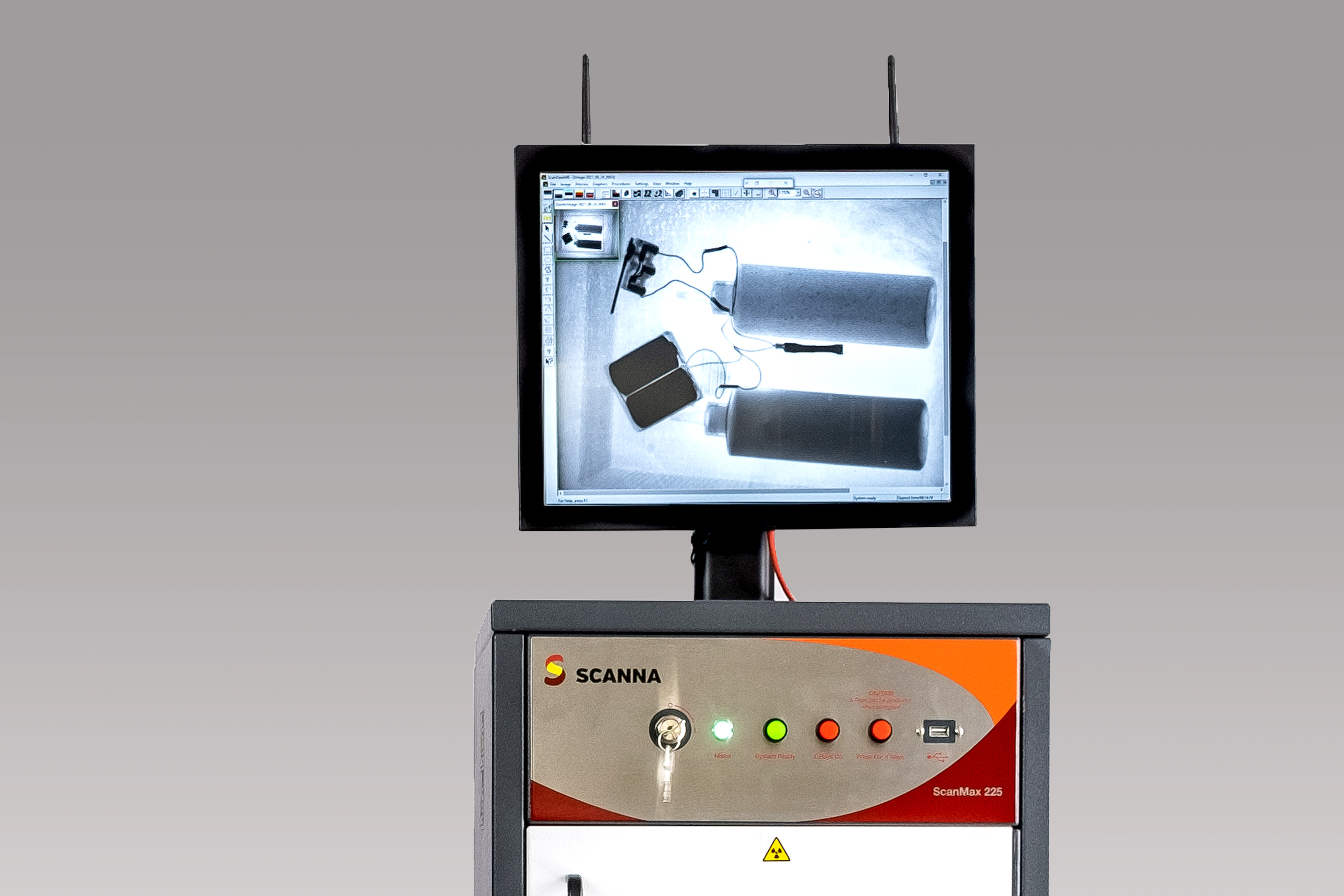

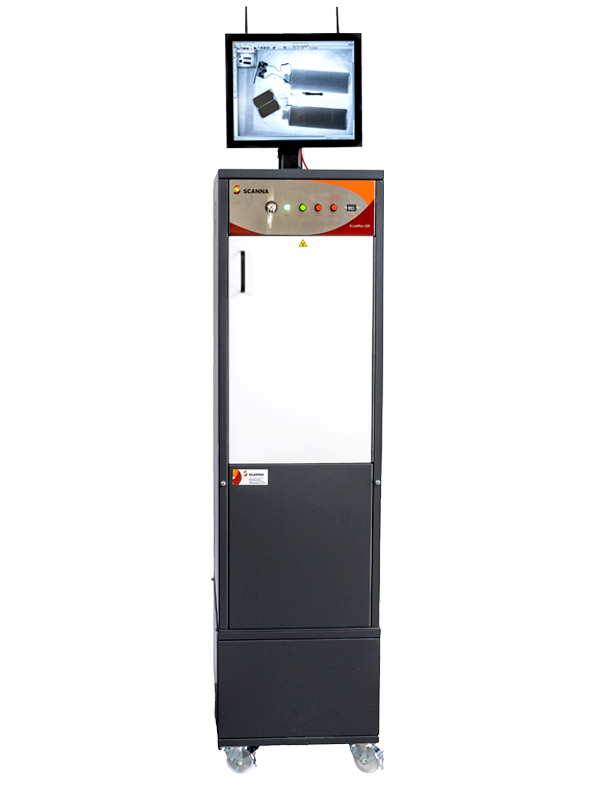

Scanmax 225 Postal Cabinet X-Ray Scanner

The Scanmax 225 is our premium model incorporating an advanced X-ray imaging capability as well as our World-class Scanview
X-ray image enhancement software. This allows detailed image investigation as well as having image export, print, email and network capabilities.

Scanmax X-ray units produce clear, definition rich, X-ray images of mail, courier and baggage items to allow operators to quickly and easily distinguish between legitimate and malicious or prohibited items.

  • 17” Flat Panel Viewing Monitor (larger screen sizes also available)
  • Keyboard Control
  • System Safety Key
  • VGA Monitor Lead
  • Monitor IEC Lead
  • Mains Lead
  • Operating Manuals
  • 12 Month Back to Base Exchange Warranty

Technical

Standard system configuration

Scanmax 225 Postal Cabinet X-Ray Scanner

Power Supply

100V +/- 15% and 220V +/- 15% single phase 50/60 hz – (state voltage when ordering)

Dimensions

H: 161.5 cm x W: 43 cm x D: 61 cm

Weight

180 kgs unpacked, 268 kgs packed

Maximum Parcel size

H: 50 cm x W: 40 cm x D: 55 cm

Screening Speed

Approx 60,000 items per hour in batches of 500

Contents of mailsack can be scanned in approximately 10-15 minutes. 250 packages per hour screened individually

Radiation Safety

Scanmax 225 meets IRR 17 and recognised international radiation standards with emissions of less than 0.1 microsieverts per hour at the surface of the machine

PAS97: 2015

Scanmax 225 is designed and tested to comply to the British Security Industry Standard: PAS97:2015 Specification for Mailscreening

Options

  • 19” Monitor
  • Remote Monitor and Mouse
  • PC Link Up
  • Blast Protection Cladding
