Rapiscan 920CX

Rapiscan 920CX

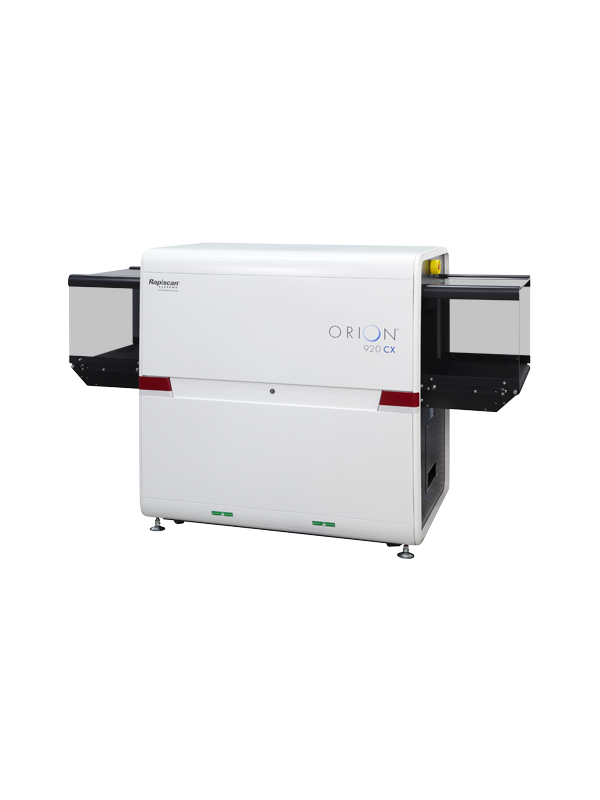

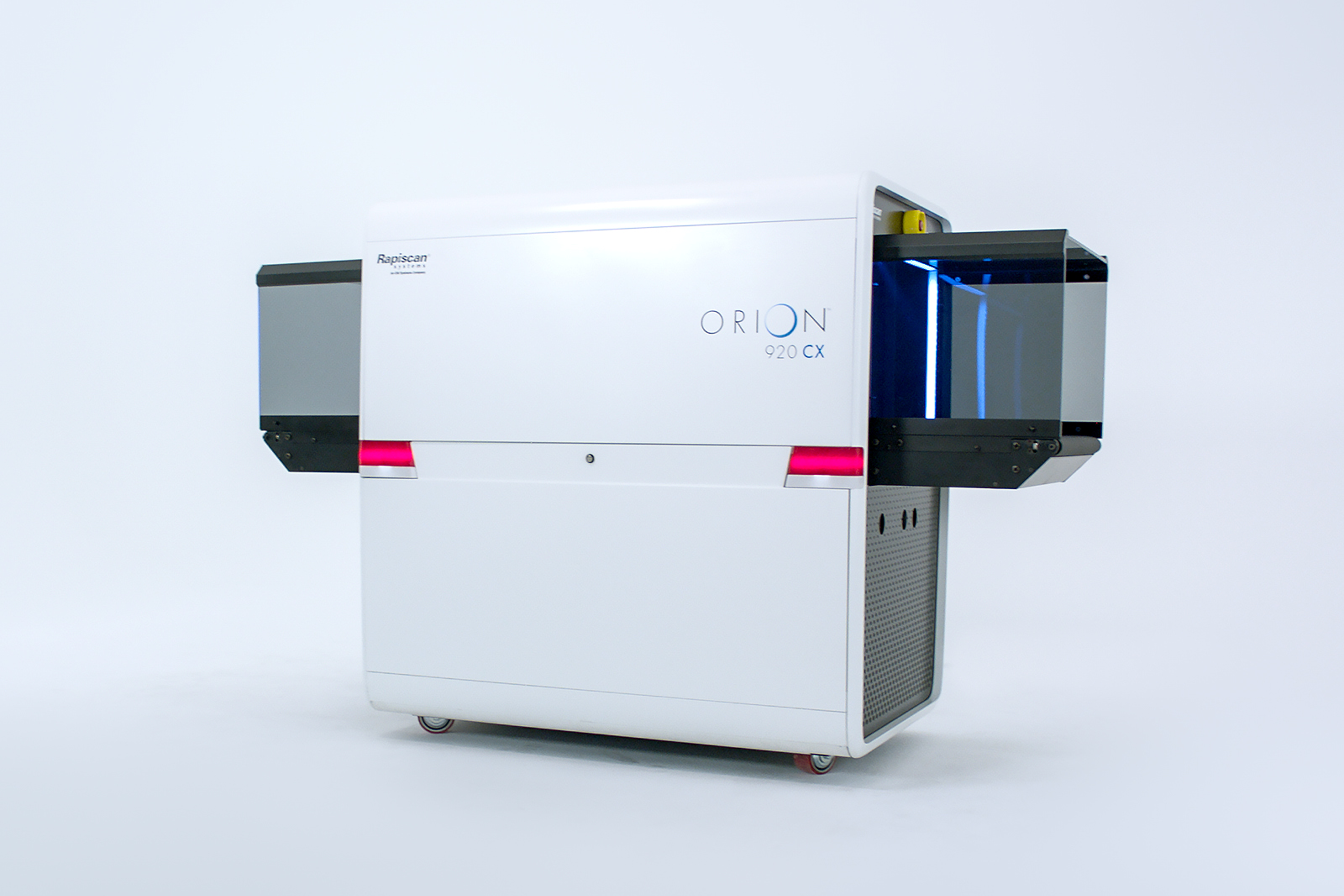

The new 920CX is a High Performance 620mm by 420mm tunnel mail, parcel and baggage x-ray screening system with best in class image quality and excellent threat detection alert capabilities.

  • Industry Best Penetration, Wire and Spatial Resolution
  • Explosives and Narcotics Detection
  • Low Density Image Enhancement (powders)
  • Networking and Remote Viewing Options

Technical

Standard system configuration

Rapiscan 920CX

  • Length: 2570 mm with UK tunnel guards fitted
  • Width: 869 mm
  • Height: 1377 mm
  • Tunnel Size (WxH): 620 mm x 420 mm
  • Net Weight: 537 kgs
  • Resolution: 42-44 AWG
  • Penetration: 42-44 mm steel standard, 35 mm high penetration option
  • Conveyor: Speed 0.2 or 0.35m/sec
  • Max Load: 165 kgs
  • Power Requirements: 115/230V +/-10% 50/60 Hz

Spectrum 4 Colour Imaging - for improved material identification

920CX can present images to the operator in the Classic 4-colour and the new proprietary Spectrum 4-colour (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.

Dual Mode Z Eff

This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel.

Explosives and Narcotics Detection

Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

European Aviation Compliance

920CX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.

Options

  • Explosive threats, narcotics & density alerts
  • Spectrum 4 Advanced x-ray image processing
  • 17 Image processing functions SINERGY low density enhancement
  • Z-effective material discrimination
  • CrystalClear One Button Image Optimisation feature
  • Automatic, Enhanced Image Archiving
  • Remote Archive Review
  • Tray Return System Compatible
  • 64-bit Operating System
