Scansilc 4357U

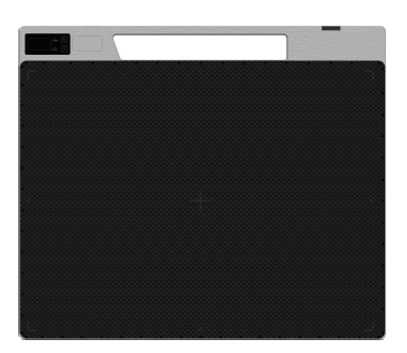

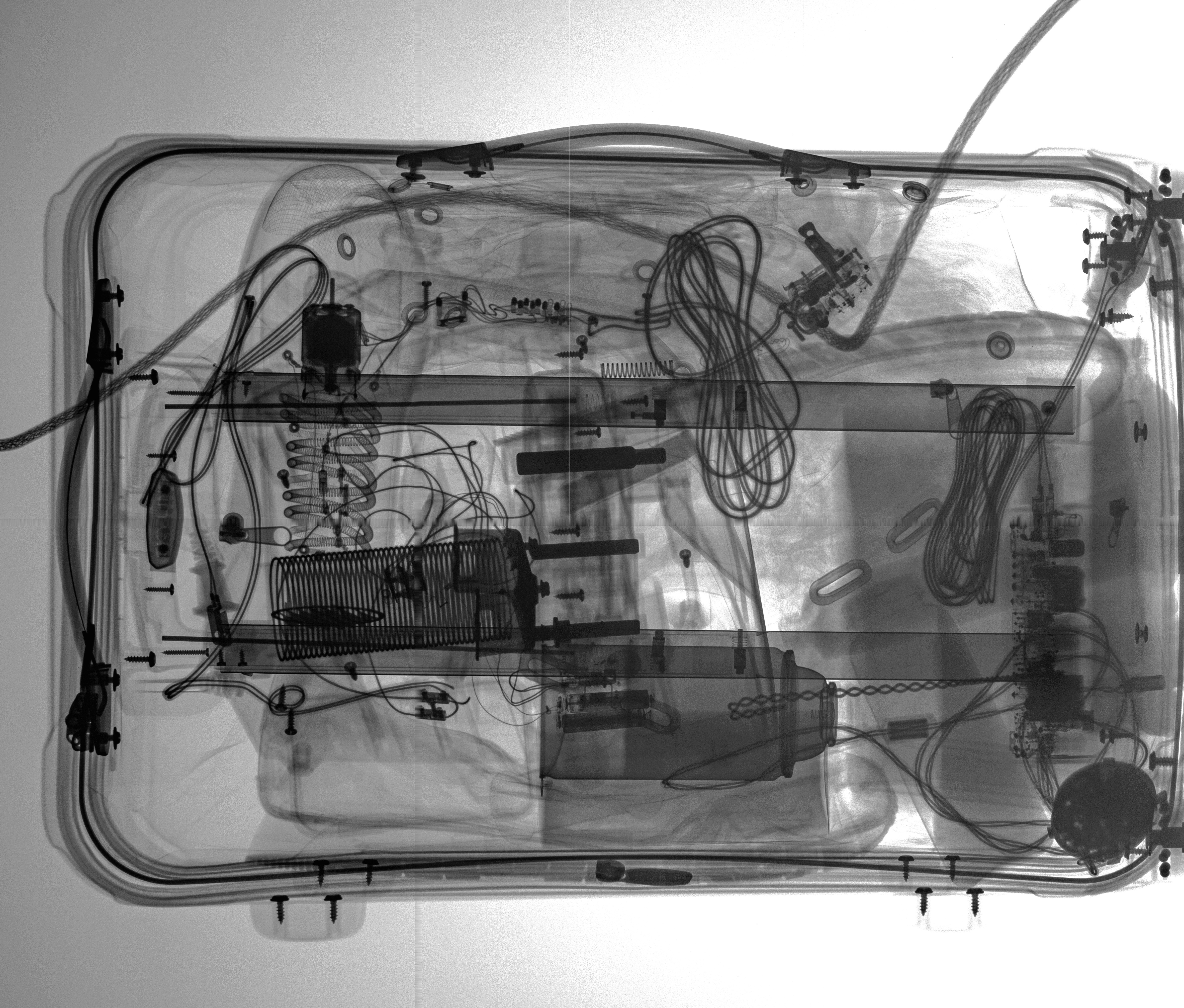

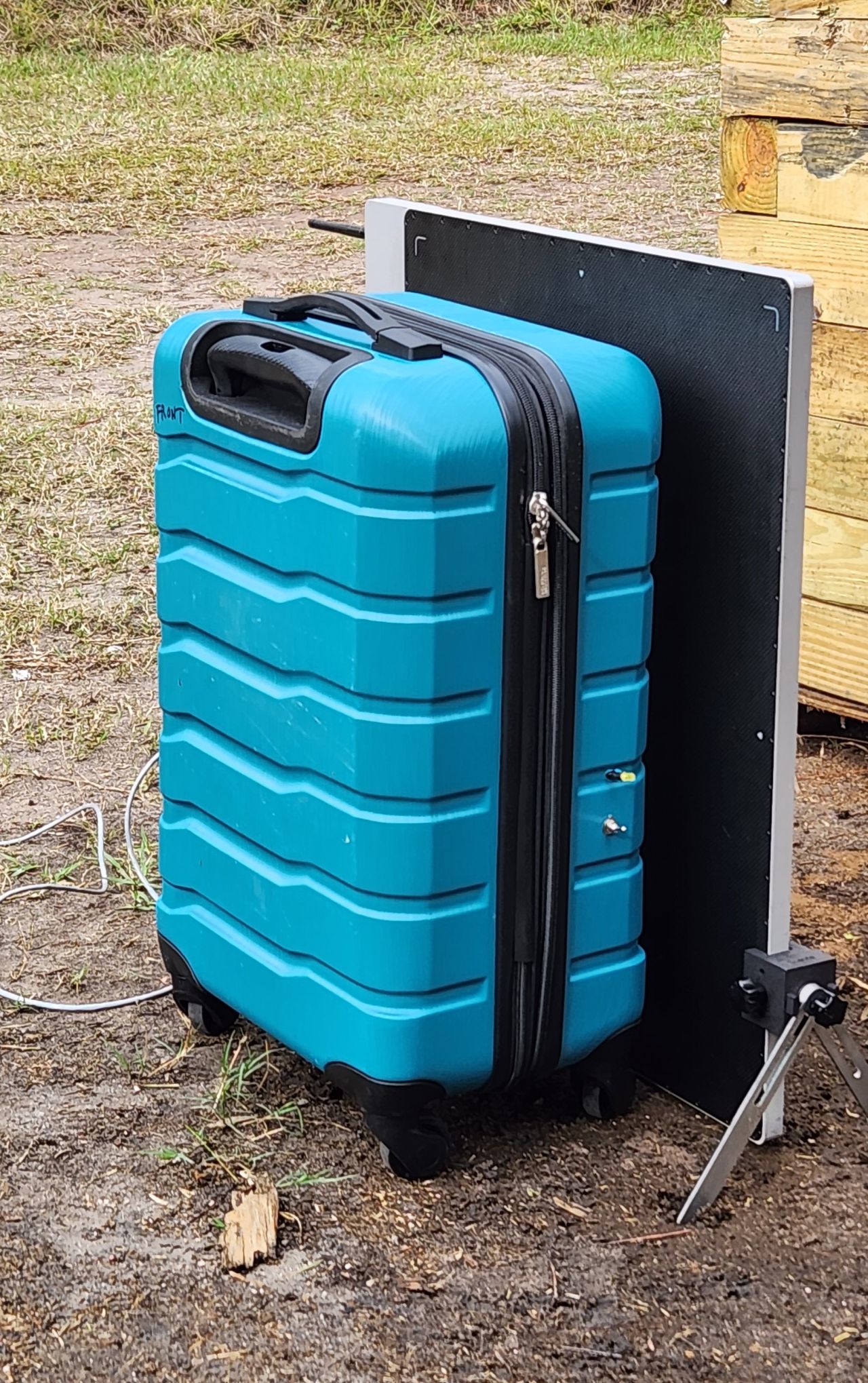

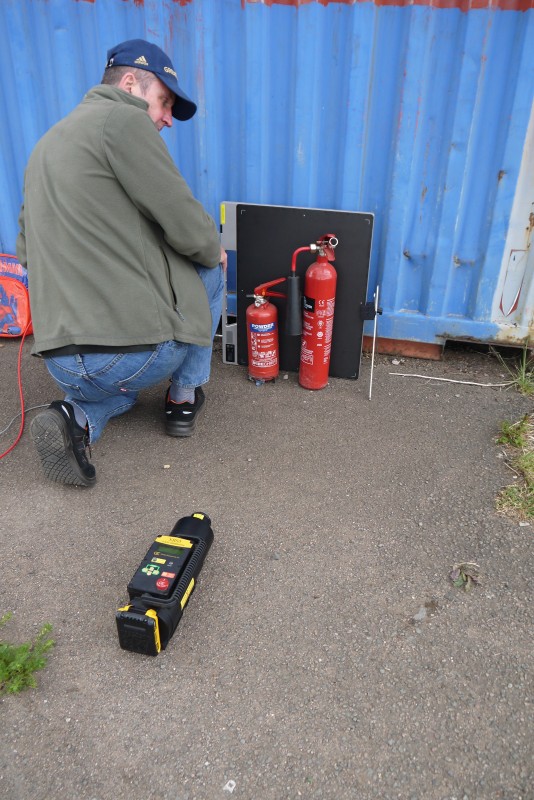

SCANSILC 4357U is a new, robust slim format x-ray panel for security and defence applications, large enought for screening cabin baggage size items and fire extinguishers in a single x-ray. The panel is designed for harsh environments and is dust and water tight. We use intelligent control circuitry within our x-ray panel instead of a separate communications box to provide fast, problem free deployment.

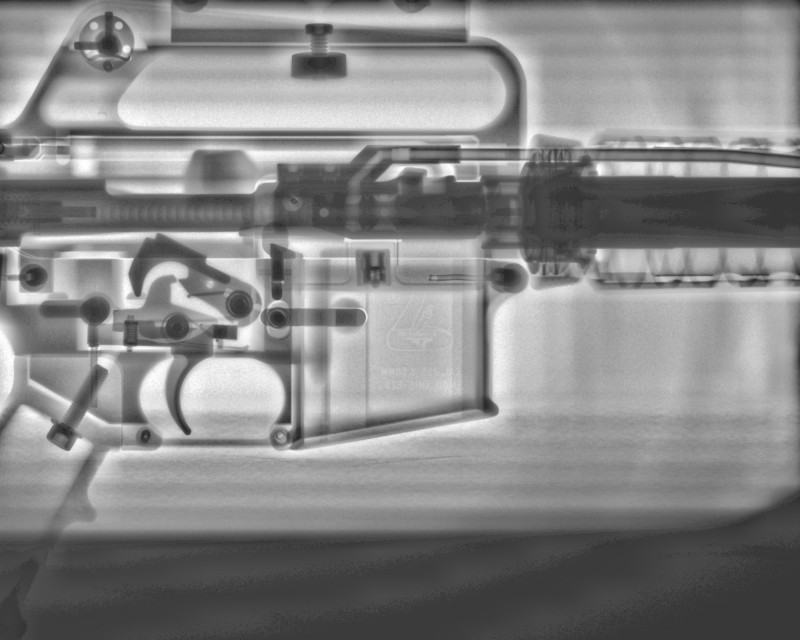

The imaging area is 430 x 573 mm and offers 140 micron high resolution images.

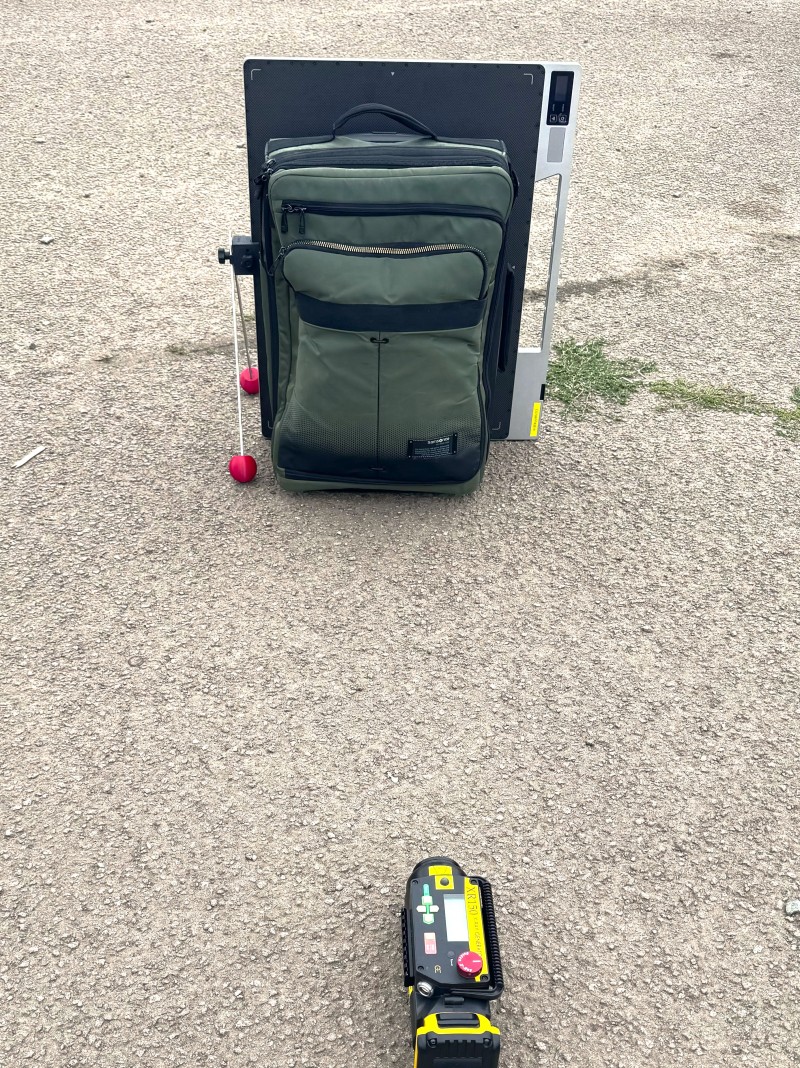

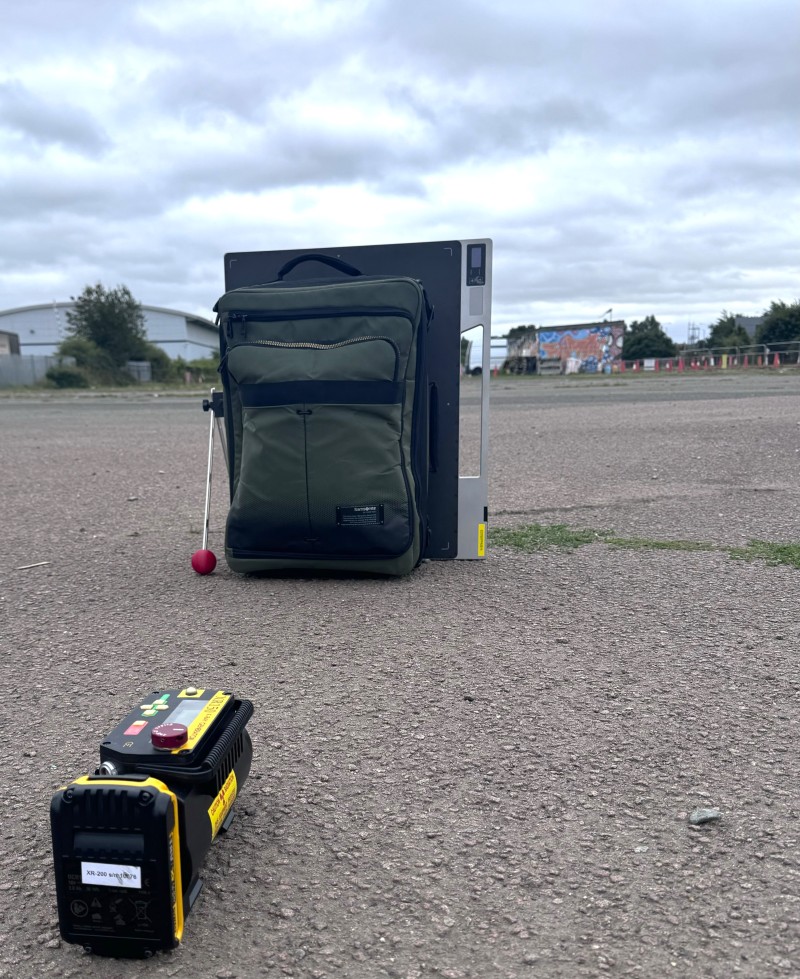

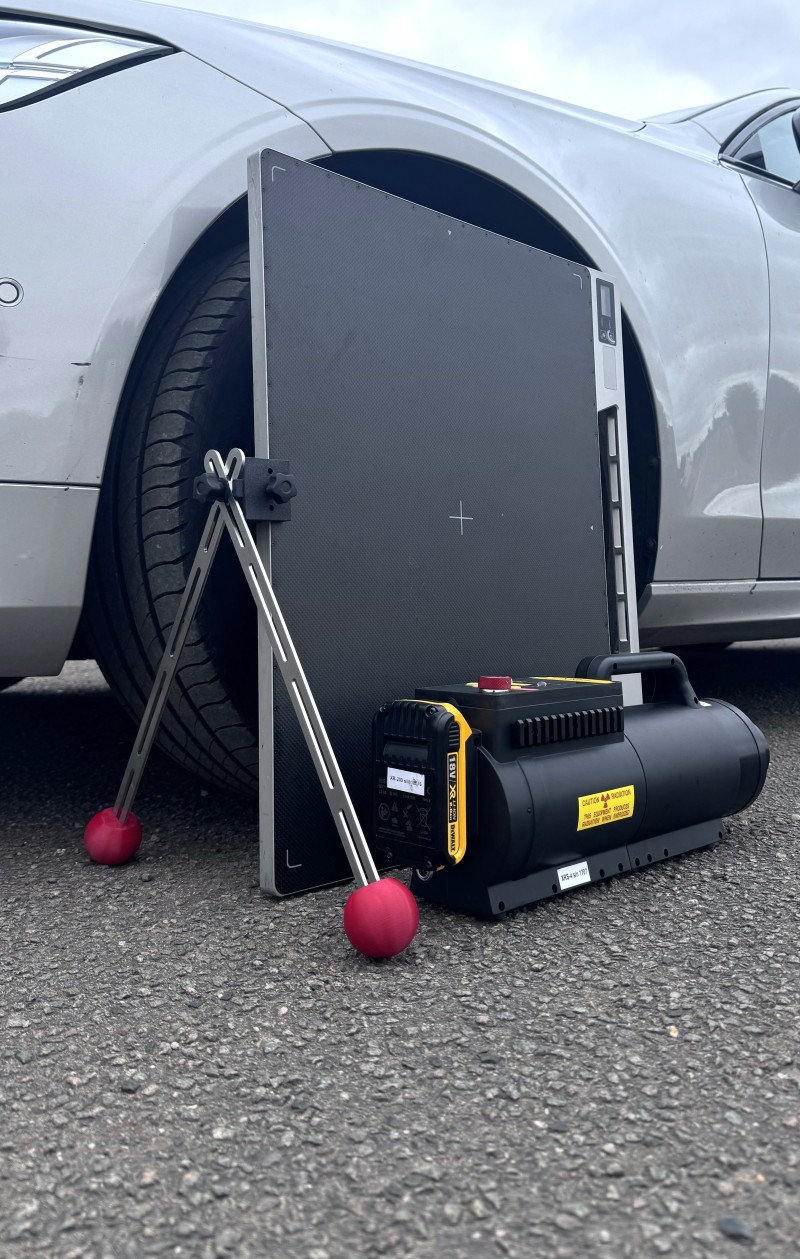

SCANSILC 4357U operates seamlessly with both pulsed and CP x-ray generators. Operators can control in sync mode from a tablet or laptop without needing an extra interface communications box. Alternative stand-alone (AED) mode with the x-ray generator triggered manually.

Two in-panel batteries allow for extended field operation.

  • Uniquely designed for security applications requiring larger area coverage.
  • Super high definition image quality of 140 microns - 3.5 lp/mm.
  • Ruggedised Unibody design - drop tested to 1m (3 ft) on all 4 corners

Technical

Standard system configuration

Scansilc 4357U

  • Dimensions: 43 x 57 cm
  • Active Image Area: 430 x 573 mm
  • Pixel Pitch: 140 micron
  • Resolution: 3.5 lp/mm
  • Physical Dimensions: 520.2 x 609.8 x 20 mm
  • Weight: 5.9 kgs
  • Environmental Protection: IP67 (Dust and Water Resistance)
  • Drop Test: 1m on all 4 corners

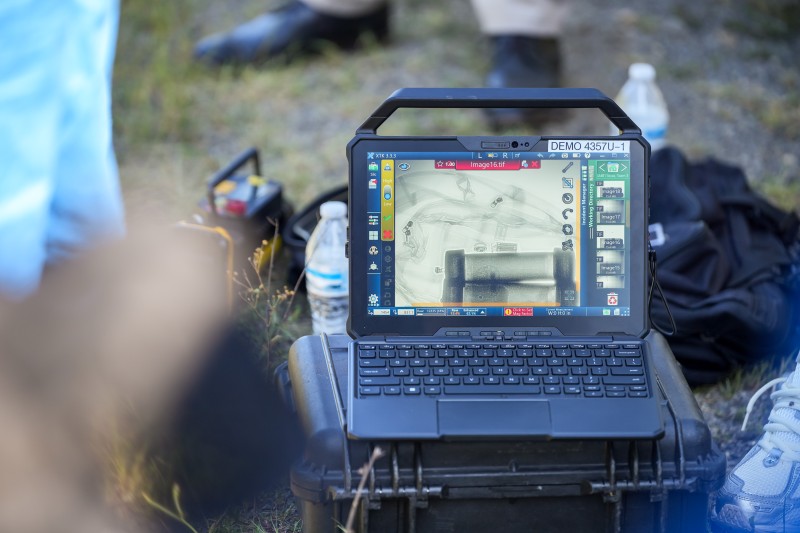

Unique control of the image panel and x-ray generator safely from the tablet/laptop without any additional bulky interface box, interface cables and connectors to carry and connect.

Dual operational modes

Either synchronized wired or wireless control from a tablet/laptop or standalone AED (automatic exposure detection) mode with manual firing of the X-ray generator.

Unique IP67 environmental protection against dirt, dust and water ingress.

IP68 connectors.

Dual in-panel batteries and hot-swappable spare battery providing extended field operational capability.

Small dead zone at bottom of panel

Options

  • A range of X-ray generator and control unit options are available
