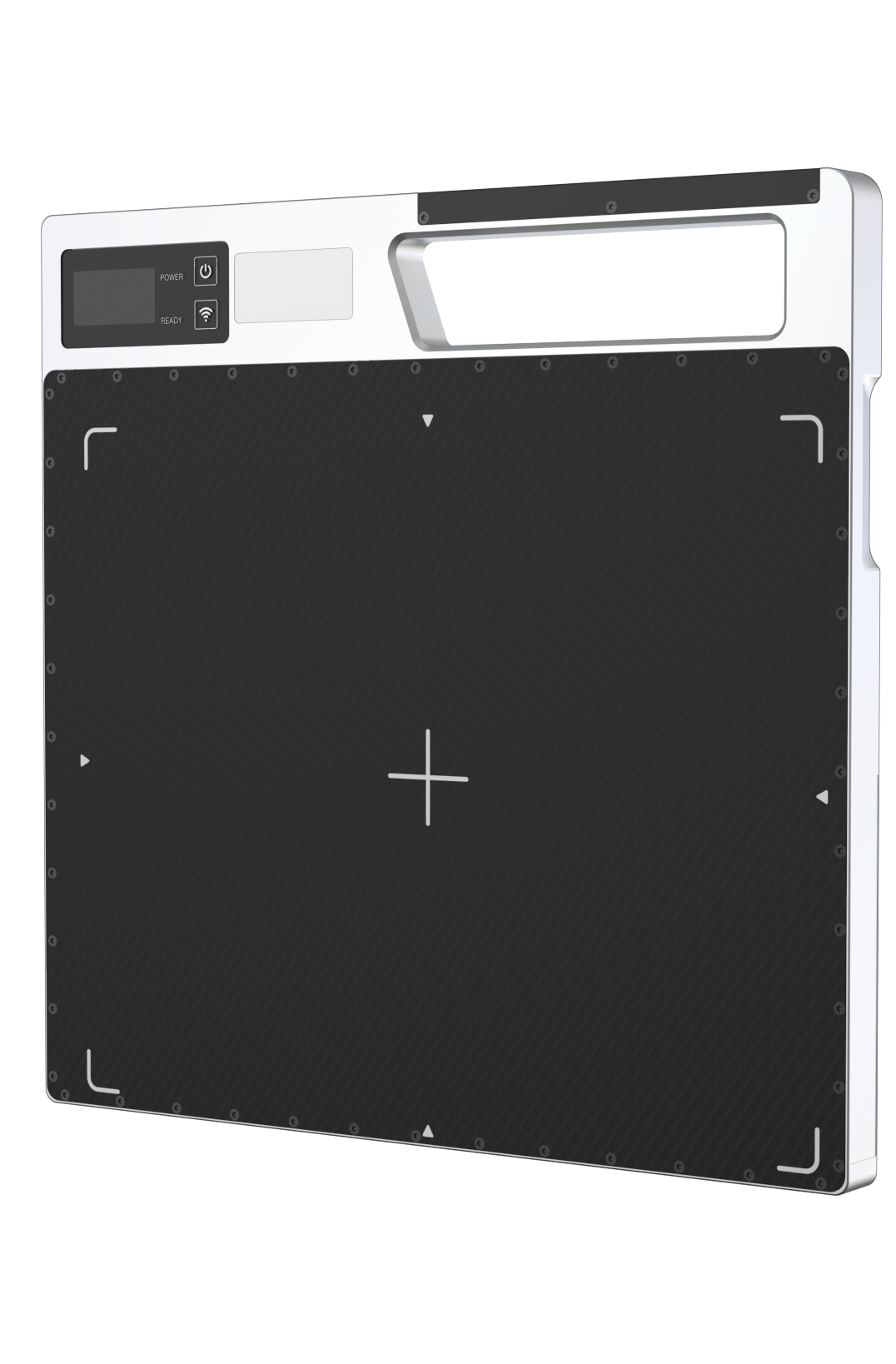

Scansilc 2430U

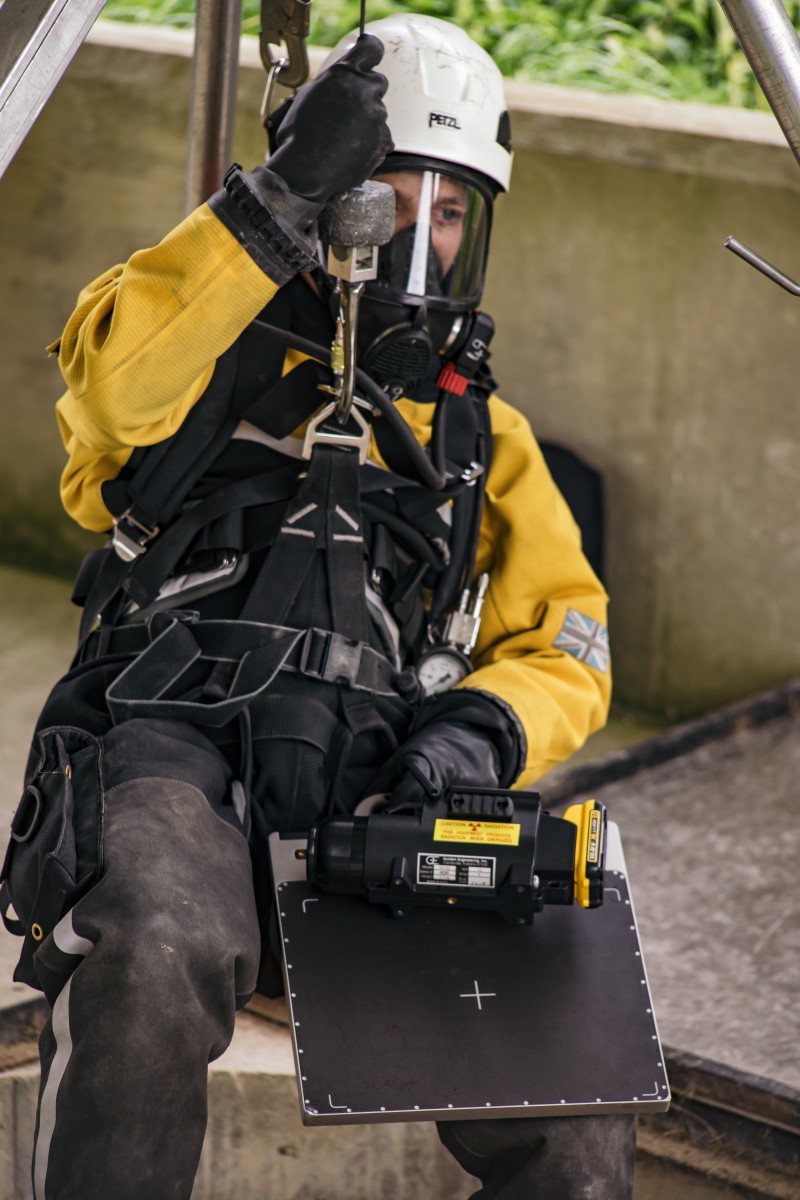

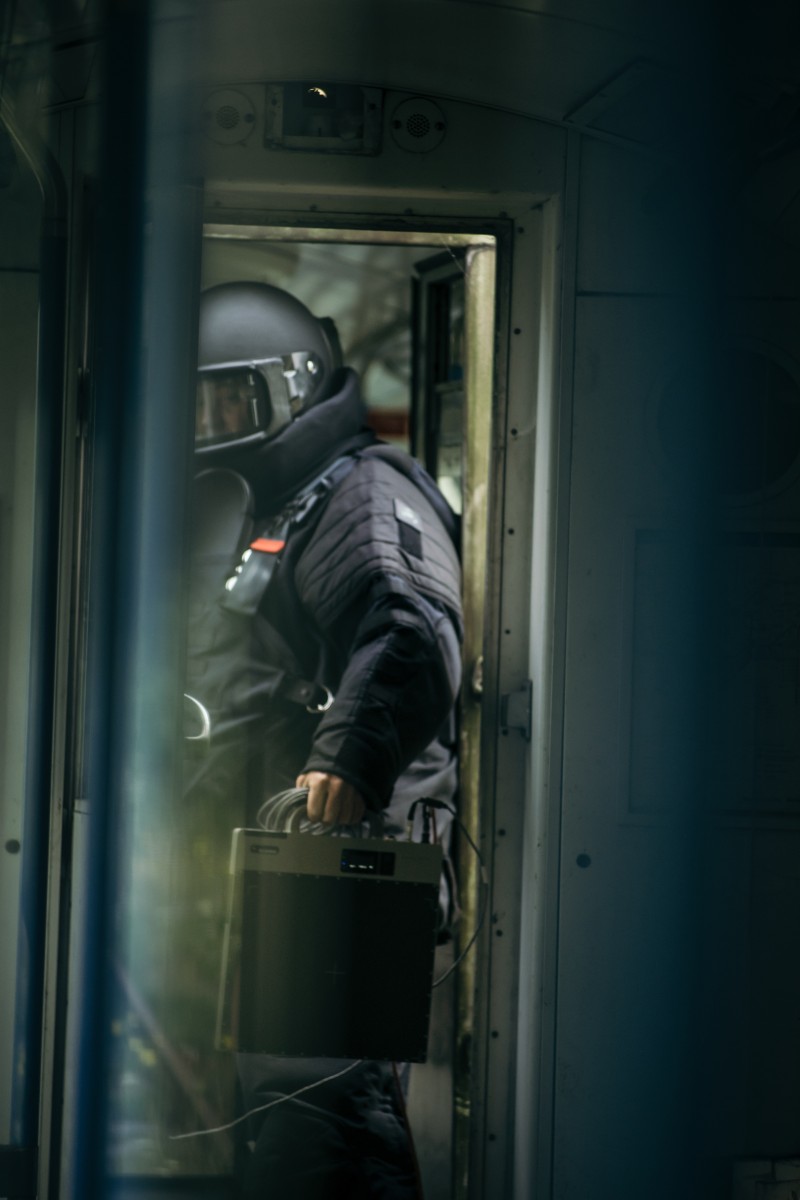

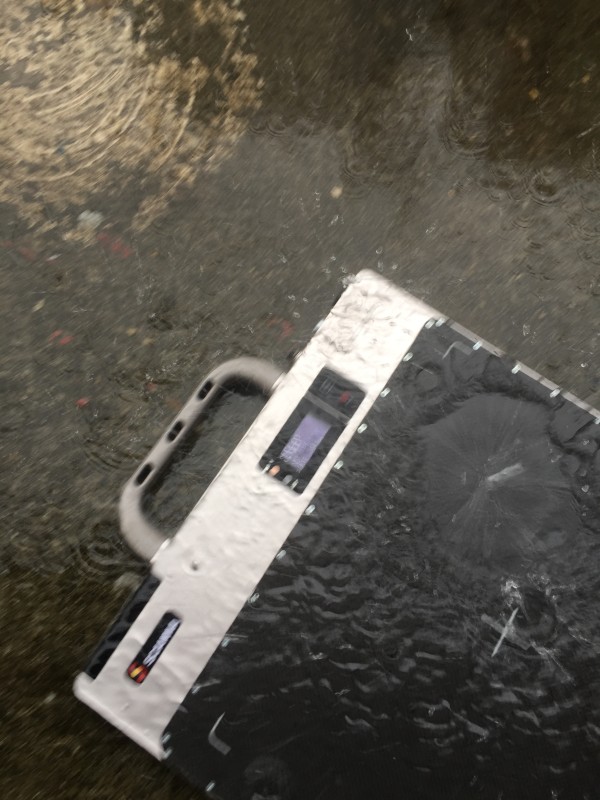

SCANSILC 2430U is a new robust and compact x-ray panel for security, defence and light industrial x-ray applications. The panel is designed for security and EOD operators, is dust and water tight, impact and drop tested to 1m, yet weighs only 2 kg.

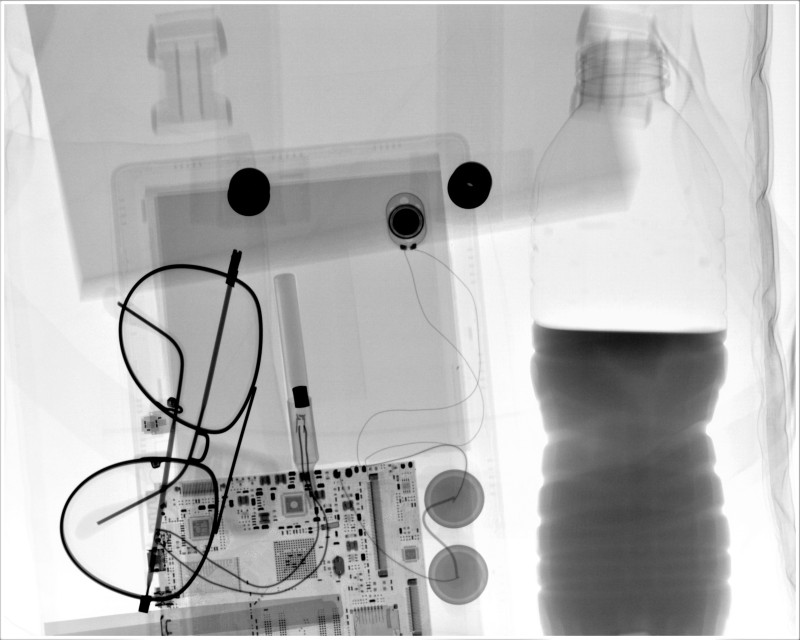

The imaging area is 233 x 291 mm and offers 16 bit, 76 micron high resolution images. The system is PB protected and designed for seamless operation with both pulsed and CP x-ray generators.

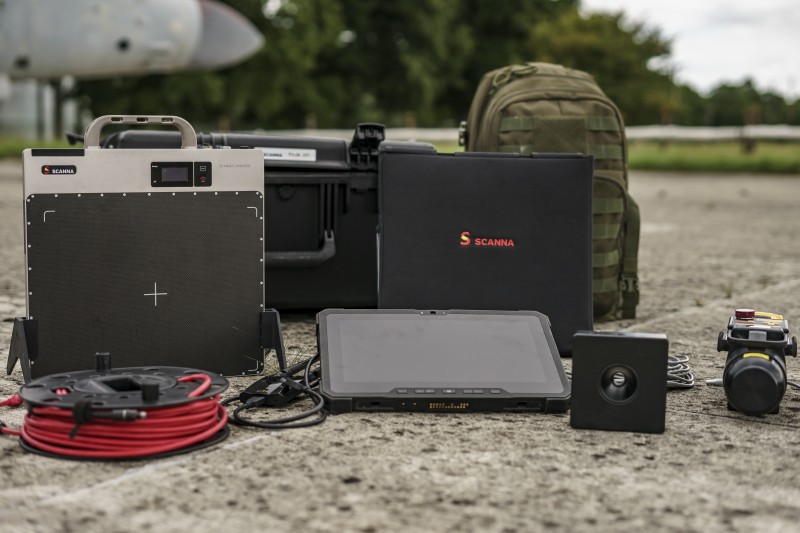

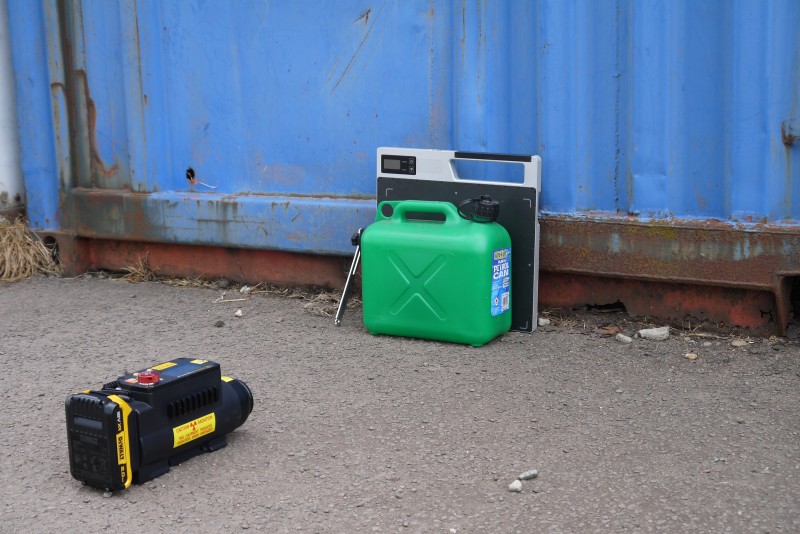

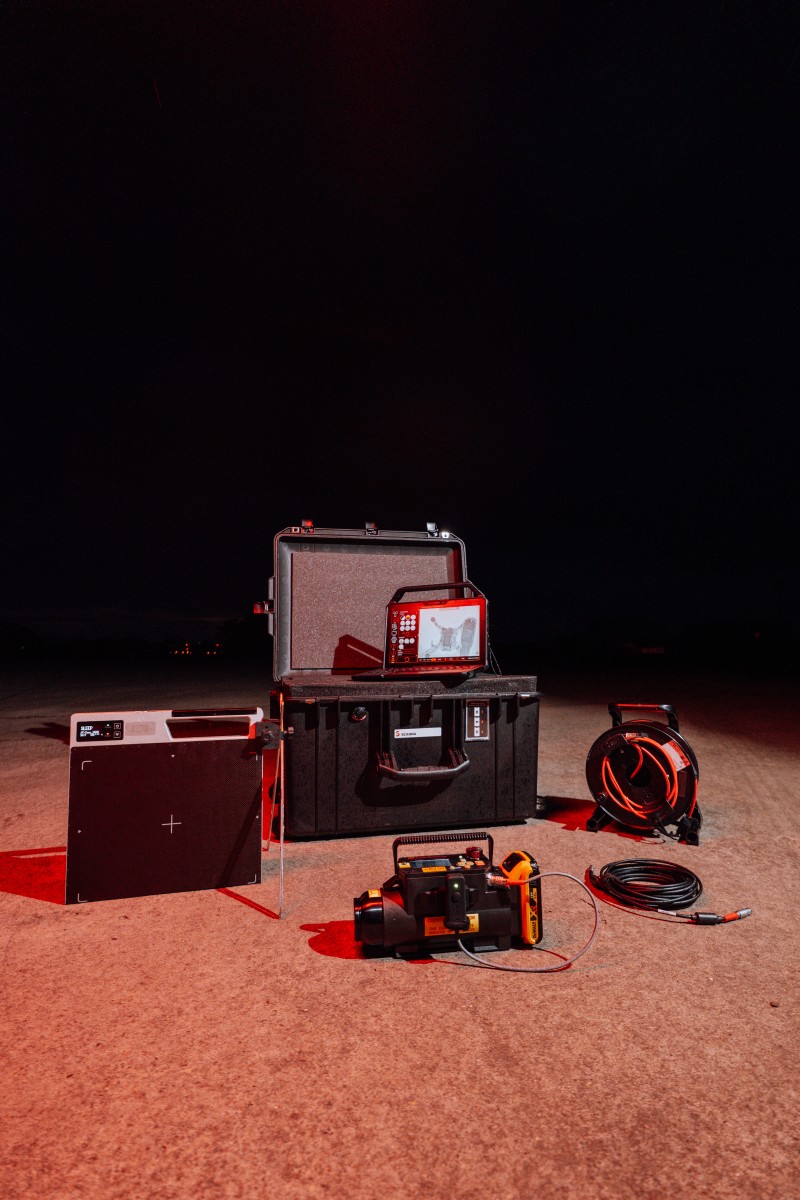

Scansilc is a versatile x-ray system, giving you the choice of various operational options according to your mission but without all the unnecessary power interface boxes and communications hubs that other x-ray models require. Operates in sync mode with a direct cable (or wi-fi) connection to your generator and laptop or with the x-ray generator stand-alone in AED mode (Automatic Exposure Detection).
Synchronised Operation

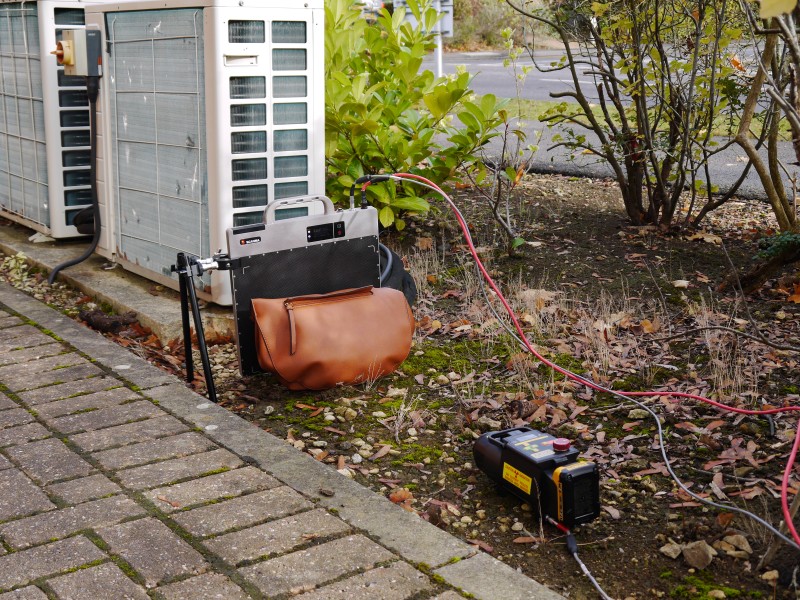

Fully cabled operation
cable between x-ray imager and laptop/tablet
cable between x-ray imager and x-ray source
Semi Cabled/semi wi-fi
cable between x-ray imager and x-ray source
wireless communication between x-ray imager and laptop/tablet
Wireless Mode
bluetooth communication between x-ray imager and x-ray source

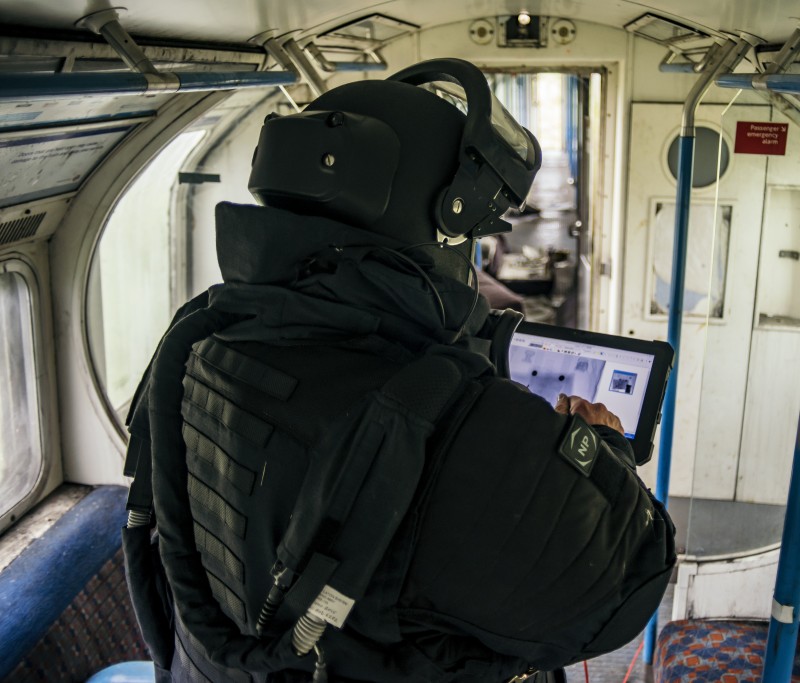

wi-fi communication between x-ray imager and laptop/tablet
AED MODE

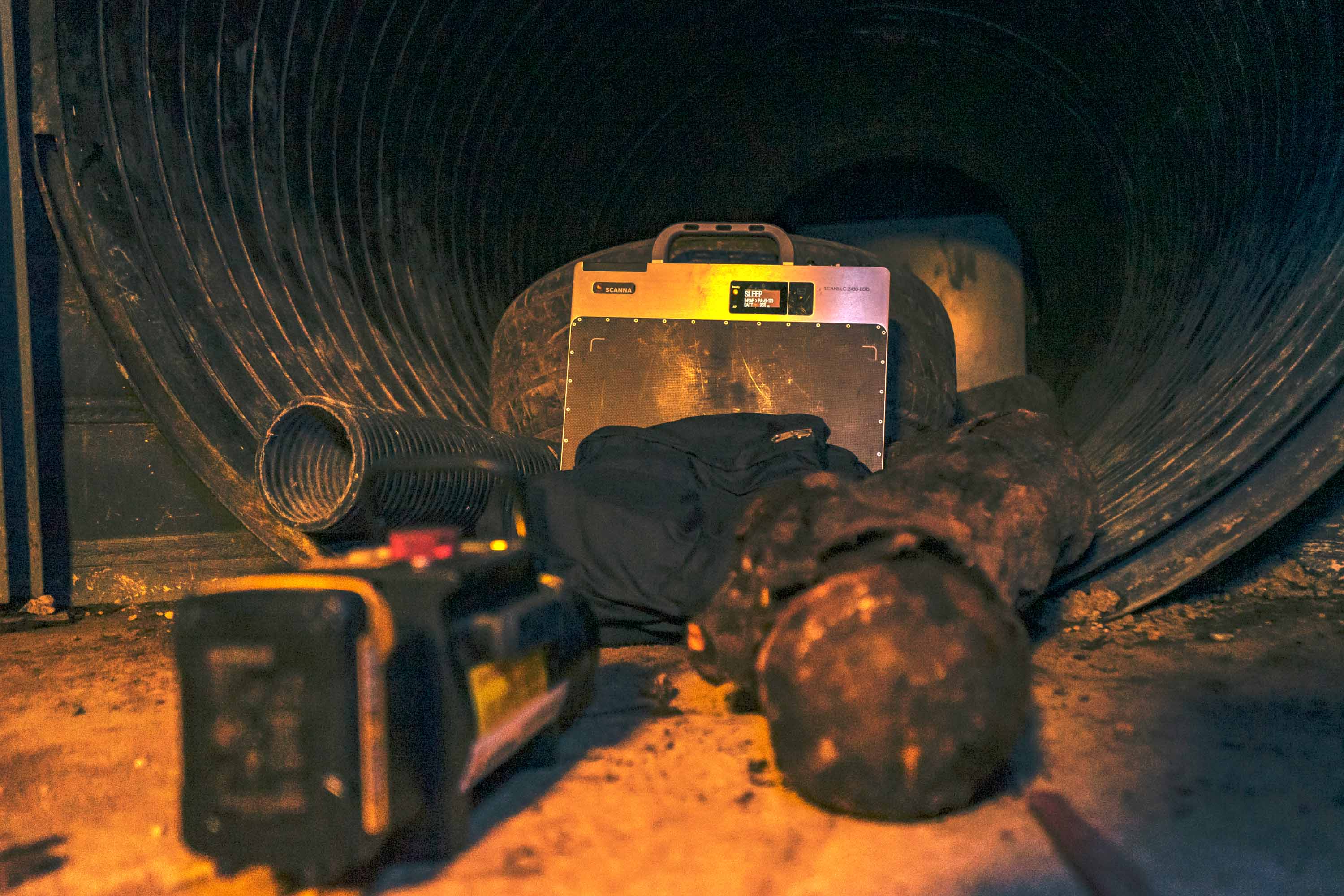

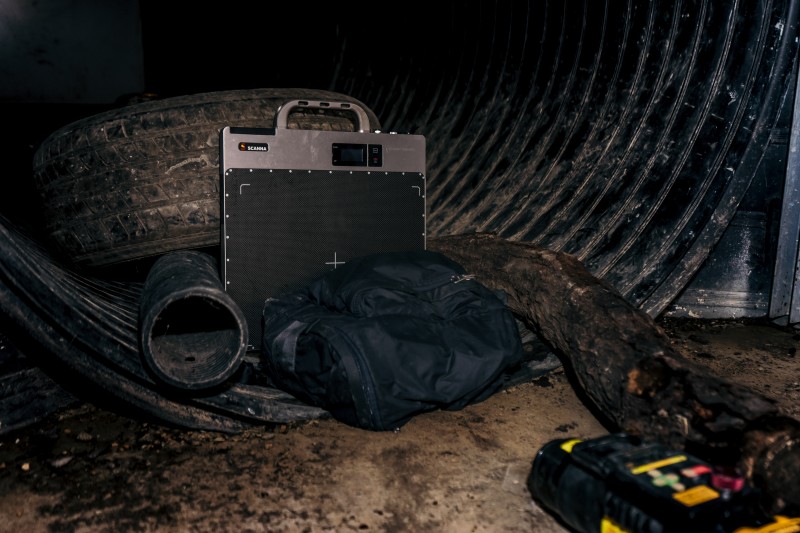

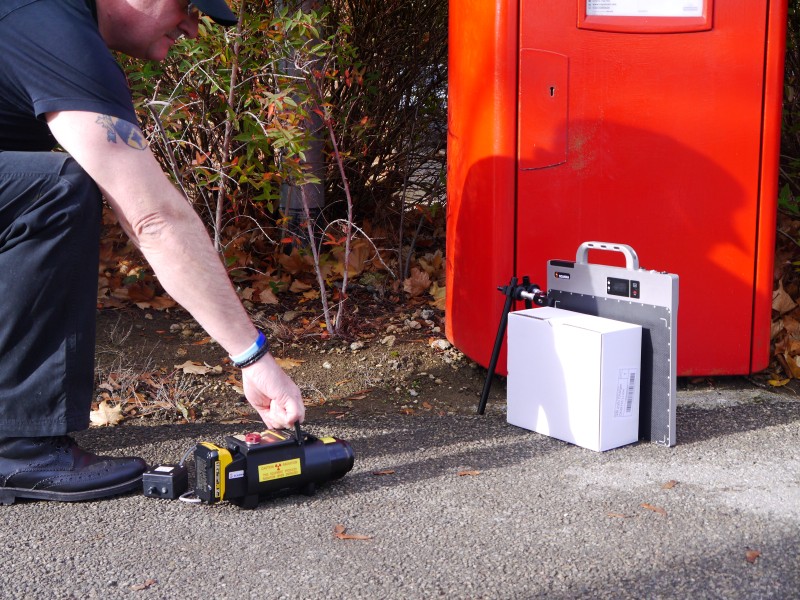

AED mode allows the use of any Golden Engineering pulsed X-ray sources and approved CP x-ray sources in a manual mode without any connection to the imaging components.

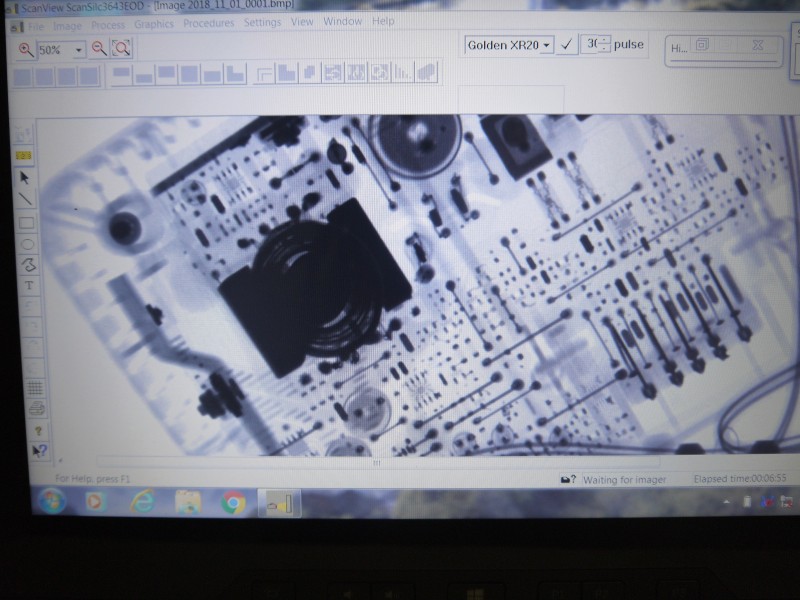

Image Data transmission back to the laptop/tablet can be via cable or wi-fi.
NOTE: Some operational images may still show previous X-ray panel designs. We are in the process of updating our materials, and new images will be added soon.
- Best in Class Imaging Quality of 76 microns
- Drop Tested to Over 1m on All 4 Corners
- Ruggedised Unibody Design
